LVS-9585

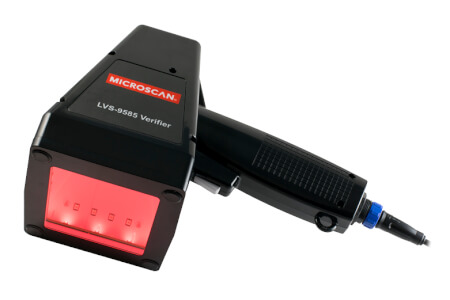

LVS-9585 Handheld DPM Barcode Verifier

The LVS-9585 handheld DPM barcode verifier adds advanced lighting options and powerful software functionality. The new auto-find feature enables users to automatically find the DPM symbol within the verifier field of view, and cycle through the lighting settings to find the lighting type that works best with the specific DPM marking and material substrate. The LVS-9585 can test both DPM parts as well as printed labels to a broad variety of global application standards, and provides comprehensive quality analysis and reporting features.

• Verify a broad variety of direct part marks as well as 1D and 2D printed barcodes with a single model
• Software automatically selects best lighting performance from integrated red or white dome and 30° angle lighting
• Validates printed barcodes to ISO/IEC, ANSI, GS1, and UDI print quality standards
• Validates direct part marks (DPM) to ISO, MIL-STD-130, and GS1 standards
• Software options include multi-sector for verification of multiple barcodes and GS1 AI content check
• 21 CFR Part 11 compliant-ready
• Supports 15 languages with the ability to add more
• Export verification reports to Excel or SQL database
• Manage operator permissions using LVS-95XX software or using Microsoft Active Directory
• Includes NIST-Traceable Calibrated Conformance Standard Test Card for calibrating the system
• Optional adjustable mounting stand Read More
