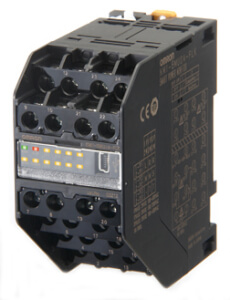

KM1 Series

Multi-circuit Smart Power Monitor for back panel application

The KM1 platform enables the visualization of power consumption for back panel applications utilizing a master-slave concept. Up to four slave units can be connected to a master unit for simultaneous measurement of electric and non-electric parameters.

• Installation time consistently reduced.
• Mounting space reduced up to 24% compared to traditional monitoring products.
• Reduced number of devices: one platform can measure up to 36 circuits.
• Wiring reduced due to high speed innerbus communication and the power supply voltage from the master.
• Customizable platform for any applications
• Integrated Energy classification due to customizable internal thresholds
• High precision measurements even for currents below 5% of the nominal value.
• No VT required / Up to 7 pulse inputs accepted to collect also non electrical information
• Equipped with temperature input
• Free configuration tool KM//KE1 settings
• Dual system monitoring with one unit Read More
